Need Help Fixing PAL Top Loader Mods

gio_ausgio_aus
in The Brewery
Hi guys,



Got a couple of PAL top loader mods done, one with a TRRS connector and the other with a Multi AV connector. They work fine except the picture has bad colour, I've attached a few photos. I was told that I may need to build a video amp and add it to the board, can anyone steer me in the right path?



Thanks.

Comments

  • PikkonPikkon
    Did you try with RF before any mods as the pal toploader is a revised motherboard.
  • gio_ausgio_aus
    yep it was working fine with the RF. I've been told to make it brighter I need to amplify the signal, but can't find anything on PAL top loaders
  • PikkonPikkon
    You shouldn't as there is no need to amplify the signal.

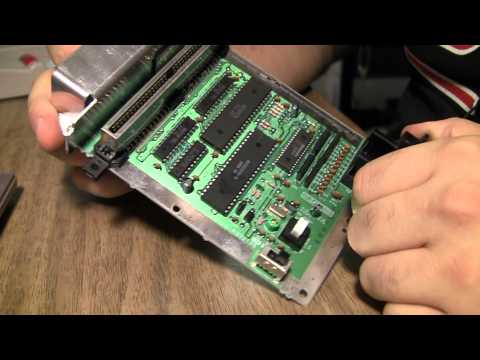

    Watch this vid at 5.10



  • gio_ausgio_aus
    yeah i have seen that, but unfortunately that's not the case :S
  • skylerszskylersz
    Hey Gio, you should probably talk to Holy-Snes about TL mods. I got one off him awhile ago (cuz I'm lazy ) and it works perfectly, very nice job as well.
  • gio_ausgio_aus
    yeah ive spoken to him already, it's different to the way he does them and he isn't sure of my mod. From memory he built a little pcb, but I like this mod coz its directly to the board. If I can work out how to amplify the video signal then all should be good, thanks.
