How to change power LED on NES

TWarwick07 · March 2012

Hello NA,

i have a nes that i have disasembled to refurb and paint and while i was at it i wanted to change the color for the power led while i have it completely disassembled. does anyone know of a good tutorial or video with step by step instructions?? or have technical details??

removed04092017 · March 2012

Just make sure you put it in the right way, not much more too it. Just make sure it's also something decently close to what the NES uses voltage wise.

TWarwick07 · March 2012

Originally posted by: 3GenGames

Just make sure you put it in the right way, not much more too it. Just make sure it's also something decently close to what the NES uses voltage wise.

Thats what i wanted to know. what are the specifics?

Redivivus · March 2012

Just buy them from this guy Done!

http://www.nintendoage.com/forum/messageview.cfm?catid=6&threadid=58411

removed04092017 · March 2012

Just take any one about the same size and put it in there. Just make sure it goes the right way, but you can figure that out just by touching the leads on the PCB for a second. Very simple.

Nightowljrm · March 2012

Originally posted by: Redivivus

Just buy them from this guy Done!

http://www.nintendoage.com/forum/messageview.cfm?catid=...

I agree. He sends you the assembled LED light with all the wires 'n hookups (to use ignorant terms). You basically just plug it in and it works great.

DxS · March 2012

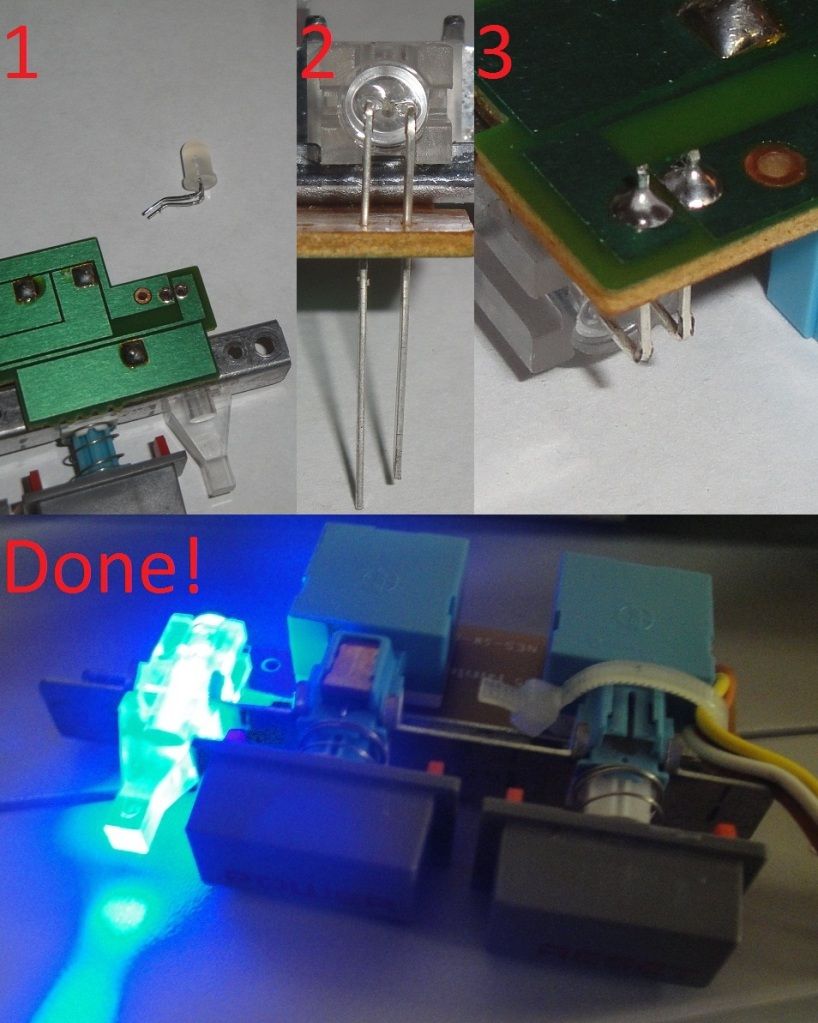

Desolder the old LED.
Insert the new LED with the short pin on the right.
Trim the pins and apply solder.

TWarwick07 · March 2012

You guys are the best thanks for the link and instructions.
